dollies

Dollies - Hardwood, Steel and Aluminum
Dollies for all types of moving application, hardwood, steel, and aluminum

Dollies
Make your move easier using dollies for a variety of applications. Move furniture,
machinery, office equipment, pallets, and more.

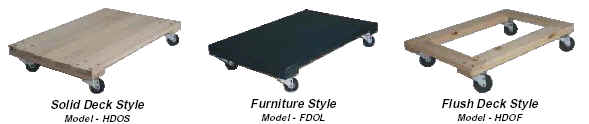

Flush Deck Hardwood Dollies
Model	Platform Size (WxL)	Capacity (lbs)	Platform Height	Wt	Price ea
HDOF-1624-9	16"x24"	900	5.5"	28	71.10
HDOF-2436-9	24"x36"	900	5.5"	33	82.00
HDOF-1624-12	16"x24"	1200	6.75"	30	78.80
HDOF-2436-12	24"x36"	1200	6.75"	34	88.50
Solid Deck Hardwood Dollies
Model	Platform Size (WxL)	Capacity (lbs)	Platform Height	Wt	Price ea
HDOS-1624-9	16"x24"	900	5.5"	32	80.50
HDOS-2436-9	24"x36"	900	5.5"	46	103.40
HDOS-1624-12	16"x24"	1200	6.75"	40	87.60
HDOS-2436-12	24"x36"	1200	6.75"	54	107.50
Vinyl Covered Hardwood Dollies
Model	Platform Size (WxL)	Capacity (lbs)	Platform Height	Wt	Price ea
FDOL-1624-9	16"x24"	900	5.5"	34	113.90
FDOL-2436-9	24"x36"	900	5.5"	48	144.00
FDOL-1624-12	16"x24"	1200	7"	42	117.80
FDOL-2436-12	24"x36"	1200	7"	56	147.80
FDOL-2448-12	24"x48"	1200	7"	70	102.40

This sturdy dolly is constructed of aluminum channel which will support 2,000 lb. capacity. Lightweight design allows personnel to conveniently pick up and carry to destination. Four swivel 5"x2" phenolic casters will provide extra mobility on tight turns.

Aluminum Channel Dollies
Model	Platform Size (WxL)	Capacity (lbs)	Caster Size	Deck Height	Net Wt	Price each
ACP-2436-20	24"x36"	2,000	5"x2"	10"	45.0	310.40
ACP-2442-20	24"x42"	2,000	5"x2"	10"	47.0	321.00
ACP-4042-20	40"x42"	2,000	5"x2"	10"	53.0	361.00

Plate Dollies are manufactured with a 3/8" raised pattern, aluminum or steel treadplate. A smooth deck is available upon request. Dollies are approximately 6-5/8" high, and have 4" x 2" molded rubber wheels standard, 2 locking swivel and 2 rigid. Casters are welded on steel dollies, and bolted on the aluminum. Capacity is 1,400 lb.

Plate Dollies
Model	Platform Size (WxL)	Capacity (lbs)	Caster Size	Deck Height	Net Wt	Price each
Steel
VPLDO/S-1418	14"x18"	1,200	4"x2"	6"	56	159.10
VPLDO/S-1824	18"x24"	1,200	4"x2"	6"	80	194.50
VPLDO/S-2430	24"x30"	1,200	4"x2"	6"	120	252.60
Aluminum
VPLDO/A-1418	14"x18"	1,200	4"x2"	6"	31	173.40
VPLDO/A-1824	18"x24"	1,200	4"x2"	6"	40	211.10
VPLDO/A-2430	24"x30"	1,200	4"x2"	6"	52	262.40

This Lo-Profile Steel Dolly allows loading and unloading of materials at floor level. Handles loads up to 840 lbs. and will carry a product that is 21" wide. Its (4) 3" x 1 1 /4" hard rubber wheels allows easy turning. Overall Size of unit is 22"W x 30"L x 4"H. Weight 55 lb. Model - LFH-55

Low-Profile Hugger Dolly
Model	Usable Size (WxL)	Overall Size (WxLxH)	Capacity (lbs)	Lowered Height	Net Wt	Price each
LFH-55	21"x21-1/2"	31"x22"x4-3/8"	840	2-1/6"	66	252.20

Pro-Mover

Solid open frame welded steel construction
Four swivel casters for optimal maneuverability
Caster Size - 6" x 2" mold on rubber
Capacity 2,000 lb.

Pro-Mover
Model	Platform Size (WxL)	Capacity (lbs)	Lowered Height	Wt	Price each
PRM-4048	40"x48"	2,000	9"	59	367.10
PRM-4248	42"x48"	2,000	9"	61	387.90
PRM-4848	48"x48"	2,000	9"	65	407.30

Aluminum Pallet Dollies

Solid open frame welded aluminum construction
Available in tilting & non-tilting models
Available with handle or support crossbar
3 1 /2" rollers with sealed bearings

OPTIONS

1. Optional Loops and Handle work great on any "Move Master" for pushing or pulling either end.

2. A center support crossbar is available as an extra support on larger loads.

Pallet Dollies - Aluminum Pallet Dollies
