     Louisville - Rolling Warehouse Ladders


Louisville Ladder steel rolling warehouse ladders are considered one of the
best on the market. Ladder equipped with ball bearing casters allowing easy
movement to any area. Rugged all steel construction. Sturdy handrails,
easy 56 degree climbing angle, “Sure Grip” tread, 7" deep steps and
10" deep top platform provide quality features for the everyday user.

Important Features:
Spring Loaded Casters
(standard on 2-step to 5-step models) Four spring loaded casters on 2-step to 5-step models.
Casters retract when load is placed on the ladder, setting the ladder firmly in place on rubber tips.
When the load is removed, springs push down the casters enabling the ladder to move about freely.

Locking Device
(standard on 6-step to 15-step models) Models 6-step and taller come equipped with a large
4" swivel caster in front and rigid casters in the rear. Stepping on bottom step activates the
locking mechanism, locking rubber tipped feet in down position. To move the ladder, just step
on the unlocking pedal.
Premium Powder Paint
Baked-on finish is durable and provides superior scratch and scuff resistance. Attractive, even
coverage with no drips or runs.
All ladders are painted blue with a premium powder paint.


** Ladders are shipped Knock-down to save on freight.

Note:  All sizes meet or exceed the requirements of ansi A14.7
and OSHA 1910.29 standards with a
450# Load Rating




NO HANDRAILS
(These Models)

MODEL
STEPS
STEP
WIDTH
PLATFORM
HEIGHT
OVERALL
HEIGHT
OVERALL
DEPTH
OVERALL
WIDTH
APPROX.
CUBE
WEIGHT
PRICE EA
GSW1601
1
16"

12"

12"

17"

19"

2.24

16

$91.00
GSW1601-W04
1
16"

12"

12"

17"

19"

2.24

16

144.00
GSW1602
2
16"

20"

20"

19"

20"

6.66

24

186.00
GSW2402
2
24"

20"

20"

19"

28"

8.33

30

215.00
GSW1603
3
16"

30"

30"

27"

20"

13.54

34

232.00
GSW2403
3
24"

30"

30"

27"

28"

13.54

41

283.00
GSW1604
4
16"

40"

40"

35"

23"

18.05

47

286.00
GSW2404
4
24"

40"

40"

35"

31"

20.83

55

396.00
HANDRAILS
(These Models)



NEW LLG MODEL
STEPS
STEP
WIDTH
PLATFORM
HEIGHT
OVERALL
HEIGHT
OVERALL
DEPTH
OVERALL
WIDTH
APPROX.
CUBE
WEIGHT
PRICE EA
GSW1603-W03
3
16"
30"
66"
27"
20"
25.83

46

289.00
GSW2403-W03
3
24"
30"
66"
27"
28"
32.29

56

356.00
GSW1604-W03
4
16"
40"
76"
35"
23"
30.00

58

337.00
GSW2404-W03
4
24"
40"
76"
35"
31"
40.00

66

449.00
GSW1605
5
16"
50"
86"
42"
23"
34.16

67

406.00

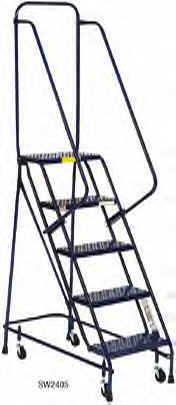

GSW2405
5
24"
50"
86"
42"
31"
45.55

79

493.00
GSW2406
6
24"
60"
96"
50"
34"
51.11

109

630.00
GSW2407
7
24"
70"
106"
57"
34"
56.66

121

670.00
GSW2408
8
24"
80"
116"
63"
34"
62.22

151

862.00
GSW2409
9
24"
90"
126"
70"
34"
67.77

170

906.00
GSW2410
10
24"
100"
136"
77"
34"
73.33

198

987.00
GSW2411
11
24"
110"
146"
83"
34"
78.88

214

1,079.00
GSW2412
12
24"
120"
156"
90"
34"
84.44

228

1,147.00
GSW2413
13
24"
130"
166"
97"
39"
92.22

289

1,310.00
GSW2414
14
24"
140"
176"
104"
39"
97.77

298

1,625.00
GSW2415
15
24"
150"
186"
110"
39"
103.33

311

1,741.00
